Summary : Semi-automatic Non-lock (keyhole type) Slider Assembly Machine (for fancy puller) is the newly design slider making machine for standard non-lock slider. Average output is 1200-4800 pcs per hour.

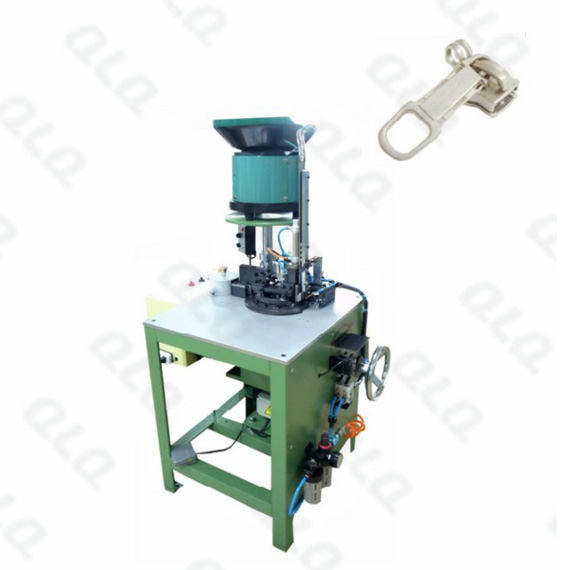

Product Name: Semi-automatic Non-lock (keyhole type) Slider Assembly Machine (for fancy puller)
Model number : QLQ-016
Summary : Semi-automatic Non-lock (keyhole type) Slider Assembly Machine (for fancy puller) is the newly designed slider making machine for standard non-lock slider. Average output is 1200-4800 pcs per hour.
PRODUCT DESCRIPTION
Semi-auto Keyhole Type Non-lock Slider Assembly Machine (Fancy puller) DIMENSION L 115*W 95* H 125 CM
MOTOR POWER 1/2HP (0.4kw)
PACKAGING MEAS.: L 120*W 100*H 140 CM
WEIGHT: NW: 240kgs, GW: 340kgs
AIR PRESSURE: 4-5 kgs square cm
WORKING SPACE 4 square meters
OPERATOR 1 operator per machine
Remarks:
1) This Semi-auto Keyhole Type Non-lock Slider Assembly Machine (Fancy puller) is our newly designed slider making machine.
2) Semi-auto mode average output: 1200-4800 pcs / hr.
3) Slider is fed from the parts-feeder then via the guide automatically through rail into deburr cutter. can assembly any kind of fancy puller.
4) Control the operation of machinery by the foot switch, can adjustment speed.
5) With sensor device, will turn off automatically if the slider is in wrong place, can protect machine and rivet cutter.
6) This Keyhole Type Non-lock Slider Assembly Machine( Semi-auto model for fancy puller) works stairs.
7) Technicians are available to offer after-sales service overseas.
